ABB 2CPX033056R9999

KA4259

KA4259 Transformer meterboard eHZ

Description

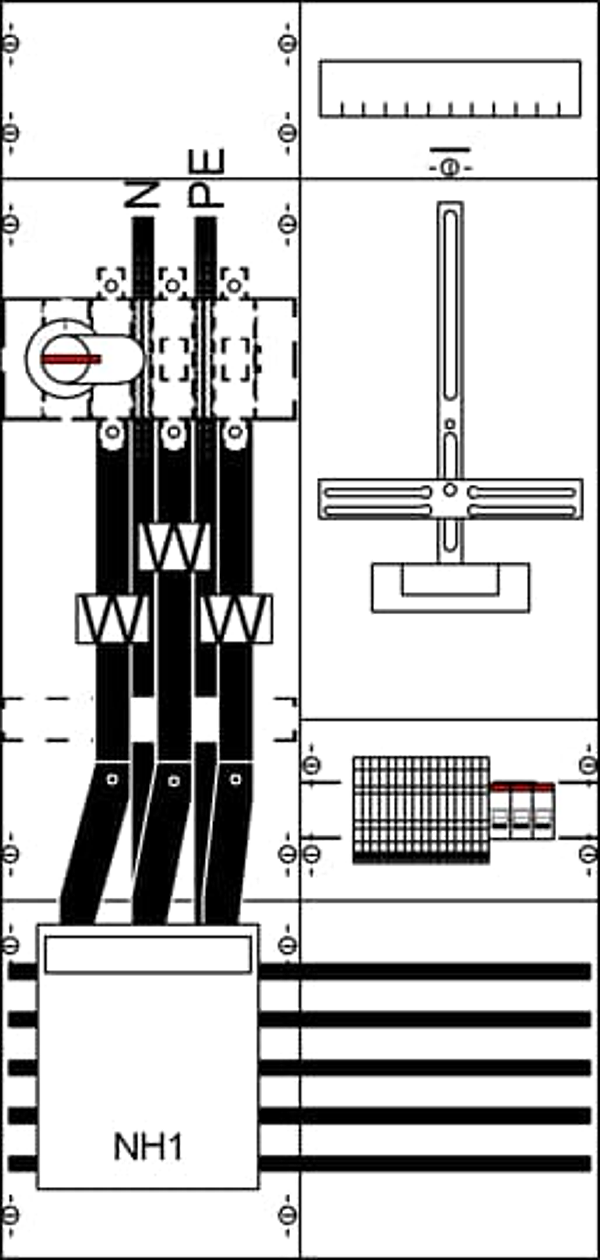

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1050 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring Cu-Busbar 30 x 5 mm, Connection N+PE (M8), Note: E DIN VDE 0603-2-2, Ratchet unit 7 GU, Overall height 3, panel width 2, Space units 168, covers out of Plastic, Quick sealable connection, RAL 7035
