ABB 2CPX033046R9999

KA4217

KA4217 transformer meterboard

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

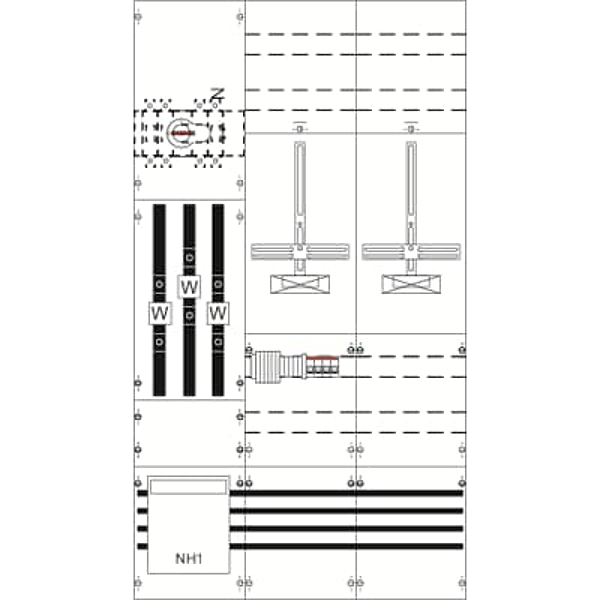

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1350 x 750 x 160, Earthing system TT, 4-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, voltage path 4 low voltage path switches B6/25kA overvoltage path category 3, busbar system Cu busbars 12 x 5 mm 4-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, parting point after the current transformer Switch 250 A / 4-pole (M8), primary wiring L1-L3 Cu-Busbar 25 x 5 mm, N 120 qmm, Connection N+PE (M8), Note: metering transformer sets to be installed in seperate housing, Ratchet unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617330462
Weight: 30.11 kg
Length: 1.36 m
Width: 0.75 m
Height: 0.14 m
