KA4246 Meterboard for transformer

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

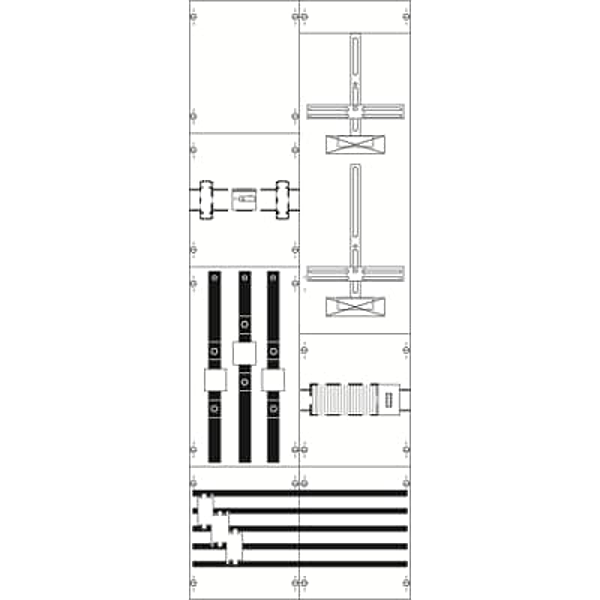

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 100 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, TAE terminal box 1, Test terminals are included according wish DSO, Secundary wiringset up to metering device, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base elements 1x3xNH00/125 A, parting point after the current transformer Switch 125 A / 3-pole (10-70qmm), primary wiring 35 qmm, N+PE 2 Connections N+PE 95qmm, Note: Busbar terminals should be ordered seperately, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617330417
Weight: 19.42 kg
Length: 1.36 m
Width: 0.50 m
Height: 0.14 m
