KA4239 Meterboard for transformer

Description

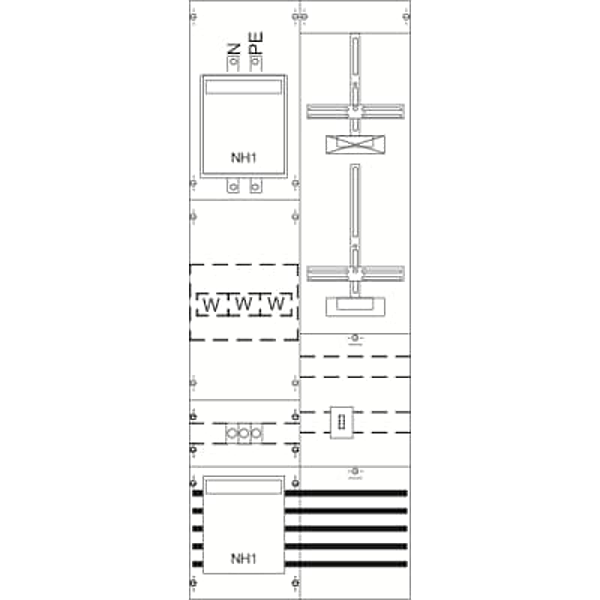

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 150 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, TAE terminal box 1, Room for test terminal, Secondary wiring current from test terminal to metering device, Secondary wiring voltage up to meter, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring L1-L3 120 qmm, N+PE 120 qmm, Connection N+PE (M8), Note: test terminal can be orderded from NB NRM, busbar terminals te ordered seperately, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
