KA4225 Transformer-meterboerd H5/W2

Description

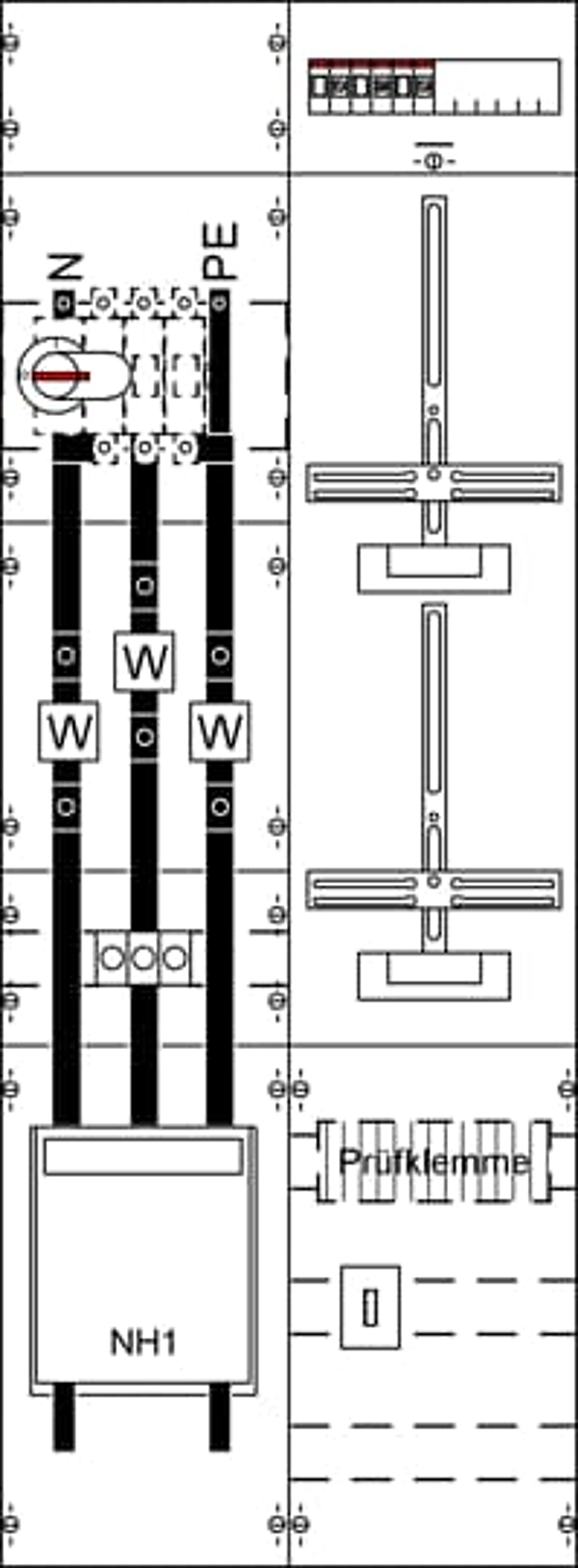

Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, TAE terminal box 1, Test terminals are included according wish DSO, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, voltage path Fuse base element D01/3-pole sealable, parting point before the current transformer Fuse switch disconnector NH1/250 A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring 120 qmm, Connection N+PE (M8), Note: metering transformer sets to be installed in seperate housing. For DSO Cottbus cabinets have to be IP54. Incomer housing could be e.g. EK221, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
