ABB 2CPX033022R9999

KA4046

KA4046 Transformerboerd H2/W2

Description

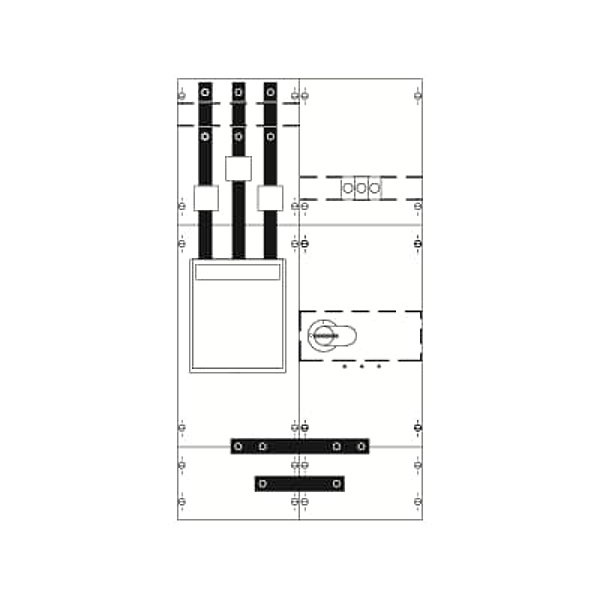

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 160 A, dimensions in mm (H x W x D): 900 x 500 x 160, Earthing system TN-S, 5-pole, voltage path Fuse base element D01/3-pole sealable, parting point before the current transformer Fuse switch disconnector NH1/250 A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring 120 qmm, PE+N Cu 30 x 5 mm, Connection N+PE (M8), Note: metering transformer sets to be installed in seperate housing. For DSO Cottbus cabinets have to be IP54. Incomer housing could be e.g. EK220, Ratchet unit 6 GU, Overall height 2, panel width 2, Space units 144, covers out of Plastic, Quick sealable connection, RAL 7035
