ABB 2CPX033021R9999

KA4045

KA4045 Transformerboerd H2/W1

Description

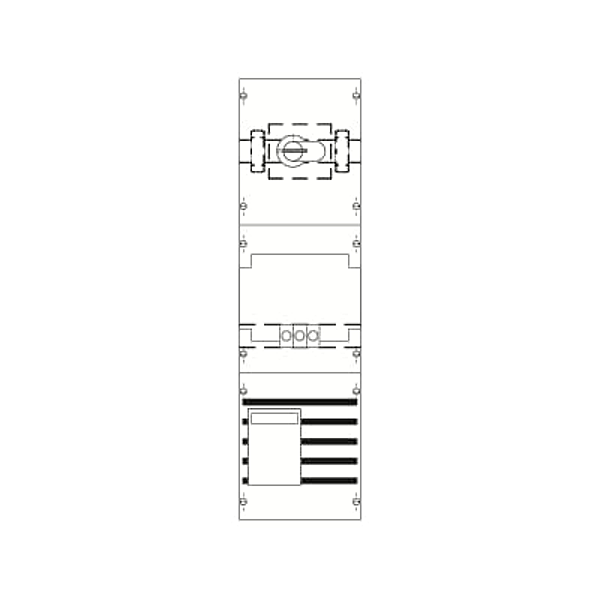

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 160 A, dimensions in mm (H x W x D): 900 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Fuse base element D01/3-pole sealable, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH00/160A, parting point after the current transformer Switch 160 A / 3-pole (10-70qmm), primary wiring 70 qmm, N+PE Connection N+PE 95qmm, Note: metering transformer sets to be installed in seperate housing. For DSO Cottbus cabinets have to be IP54. Incomer housing could be e.g. EK220, Ratchet unit 6 GU, Overall height 2, panel width 1, Space units 72, covers out of Plastic, Quick sealable connection, RAL 7035
