2CPX032969R9999
KS4060

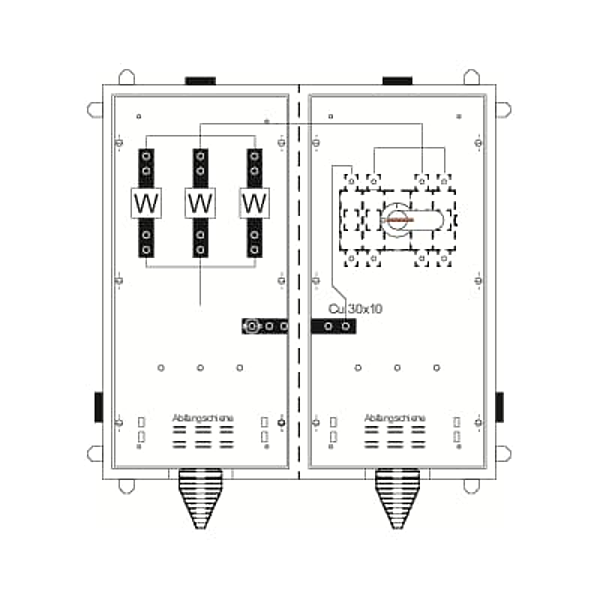

KS4060 Transformer cabinet
Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TT, 4-pole, parting point after the current transformer Switch 400 A / 4-pole (M10), primary wiring L1-L3 120 qmm, N Cu-Busbar 30 x 10 mm, Connection N (M10), Note: Mounting with included mounting brackets, Ratchet unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617329695 |
Weight: | 58.40 kg |
Length: | 0.30 m |
Width: | 0.80 m |
Height: | 0.81 m |
