ABB 2CPX032968R9999

KS4034

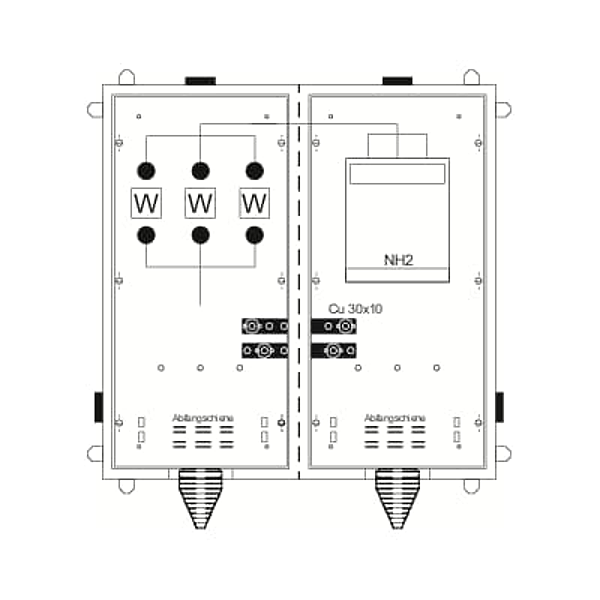

KS4034 Transformer cabinet

Description

Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TN-S, 5-pole, parting point after the current transformer 3 Fuse switch disconnector NH00/400 A (M12), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Note: Mounting with included mounting brackets,busbar for metering transformers may be required, Ratchet unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035
