Article image 2CPX032967R9999

ABB 2CPX032967R9999

KS4031

KS4031 Transformer cabinet

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

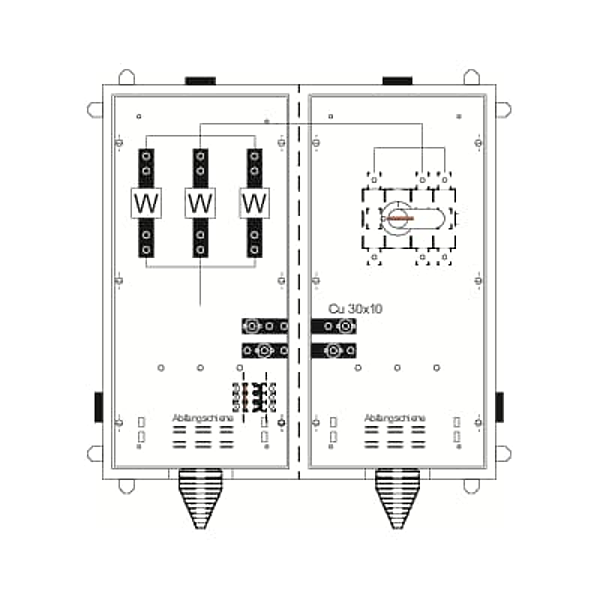

Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TN-S, 5-pole, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 120 qmm, N+PE Cu-Busbar 30 x 5 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Note: Mounting with included mounting brackets, Ratchet unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617329671
Weight: 58.47 kg
Length: 0.83 m
Width: 0.80 m
Height: 0.81 m
