ABB 2CPX032962R9999

KS4267

KS4267 Transformer and meter cabinet

Description

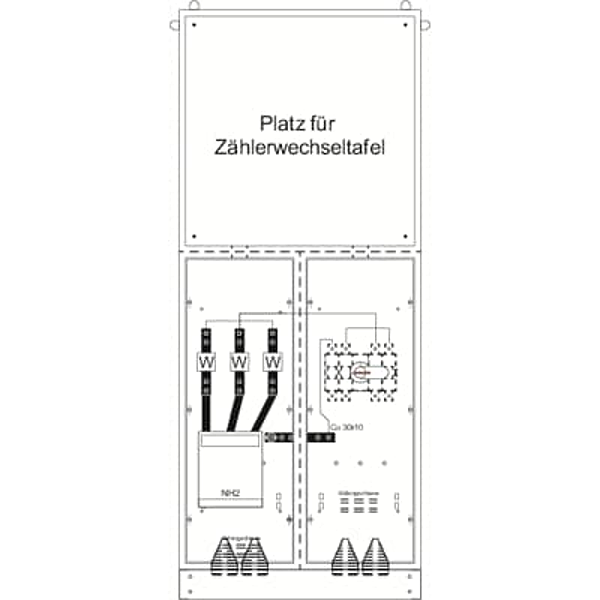

Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, degree of protection IP54, applicable standards: EN 61439-1, rated current 400 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1850 x 800 x 350, Earthing system TT, 4-pole, Number of transformer meter spaces 1, Meter replacement plate KF140SB or KF142, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, parting point after the current transformer Switch 400 A / 4-pole (M10), primary wiring L1-L3 185 qmm, N Cu-Busbar 30 x 10 mm, Copper busbar with terminal 16 up to 150 qmm, Note: Provision of meteringboard to be defined with DSO, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, RAL 7035
