ABB 2CPX032961R9999

KS4278

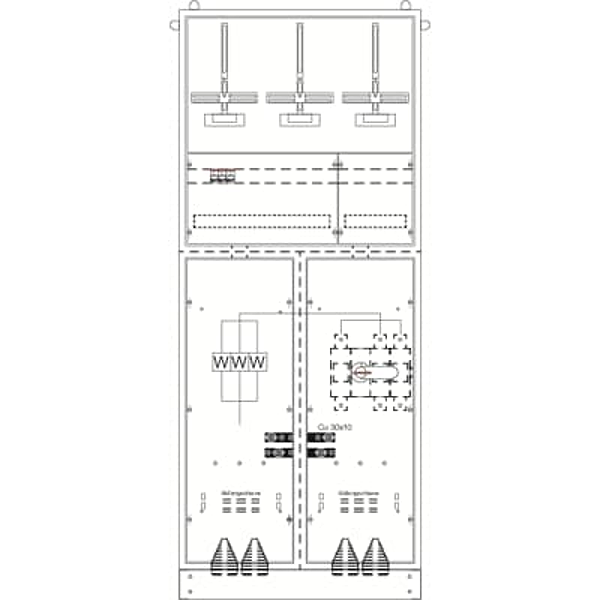

KS4278 Transformer and meter cabinet

Description

Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, rated current 400 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1850 x 800 x 350, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate with metering conversion board KF142 without wiring, 3 LS-switches B10/25 kA and wiring for power supply NSGAFöU 4 qmm wiring not connected, parting point after the current transformer Switch 630 A / 3-pole (M12), primary wiring L1-L3 185 qmm, N+PE Cu-Busbar 30 x 10 mm, N+PE Busbar with busbar snap on terminal 16-150qmm, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, RAL 7035
