ABB 2CPX032954R9999

KS4215

KS4215 Complete cabinet for transf.

Description

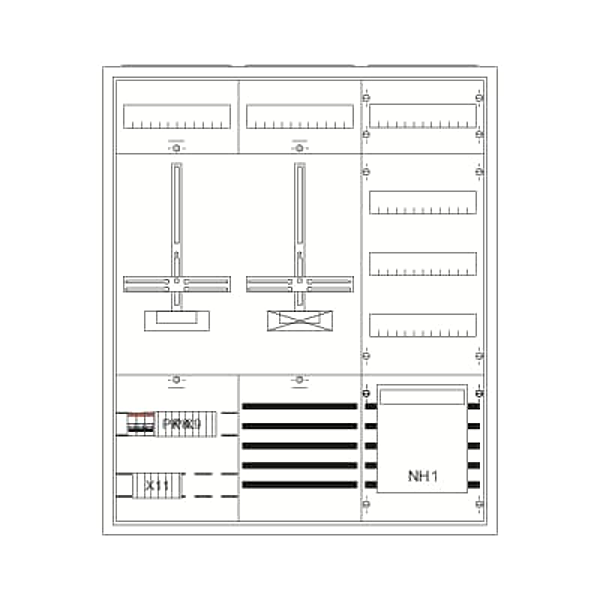

Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 950 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, Number of transformer meter spaces 1, Number of distributor rows 4, TAE terminal box 1, net side compartment, meter space: with busbar, Test terminals are included according wish DSO, voltage path Miniature circuit breaker B10/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point after the current transformer Fuse switch disconnector NH1/250A, Busbar terminal up to 50 qmm, Note: Execution according Netrion-specification AVB1, Ratchet unit 6 GU, Overall height 2, panel width 3, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
