ABB 2CPX032951R9999

KS4228

KS4228 Cabinet metering and trans

Description

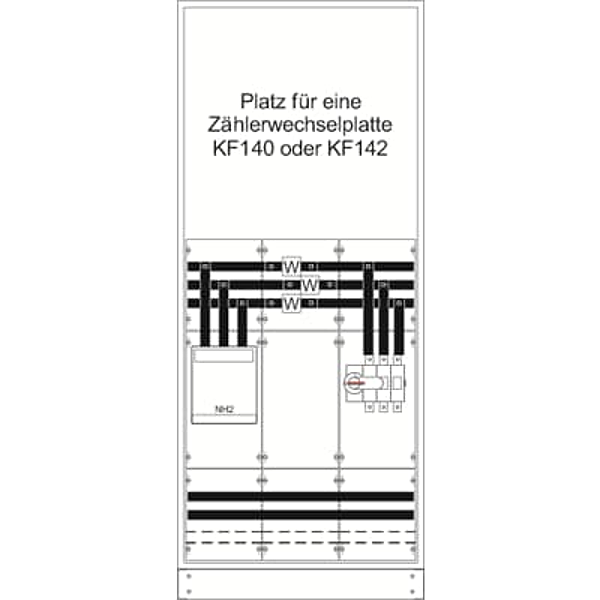

Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, EN 61439-2, rated current 400 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, door opening angle 180 degree, dimensions in mm (H x W x D): 1850 x 800 x 275, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate KF140SB or KF142, busbar system Cu busbars 30 x 10 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring L1-L3 Cu 30 x 5 mm, metering transformer busbar 30 x 10 mm, PE+N-busbar Cu 30 x 10 mm, Note: metering transformer conversion board KF140SB or KF142 should be ordered seperately, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
