KS4224 Meter+ transformer cabinet

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

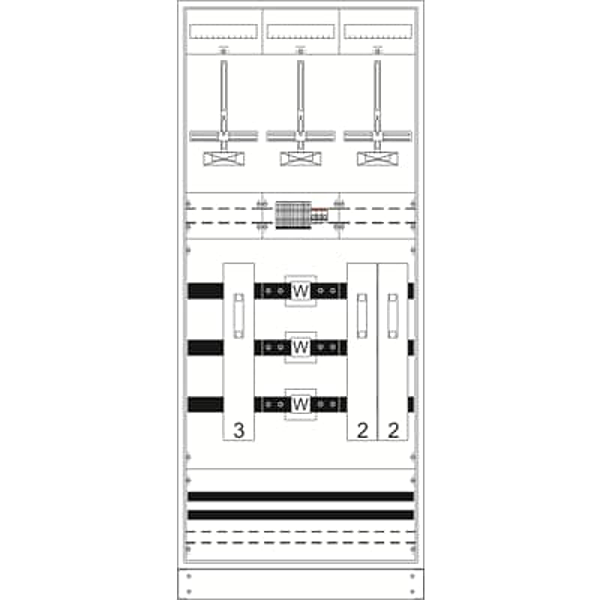

Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection I (earthed), degree of protection IP55, applicable standards: EN 61439-1, EN 61439-2, rated current 630 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1950 x 800 x 350, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of reserve spaces 1, Number of SG spaces 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired and test terminal according requirements grid BW, voltage path 3 low voltage path switches B10/25kA overvoltage path category 3, busbar system Cu busbars 60 x 10 mm 5-pole, parting point before the current transformer Fuse disconnector NH3/630 A, parting point after the current transformer 2 Fuse disconnector NH2/400 A, Incomer: Direct teminal connection 2 x 35-150 qmm or 2 x 50-185 qmm, Outgoing: connection on terminal screws fuse disconnector, PE+N-busbar Cu 40 x 10 mm, Note: In case short circuit is > 25 kA, Backup protection required for voltage path circuit. Short circuit value to be obtained from DSO. Busbar terminals should be ordered seperately, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617329503
Weight: 129.71 kg
Length: 0.40 m
Width: 0.80 m
Height: 1.95 m
