Article image 2CPX032949R9999

ABB 2CPX032949R9999

KS447

KS447 Cabinet transformerboard

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

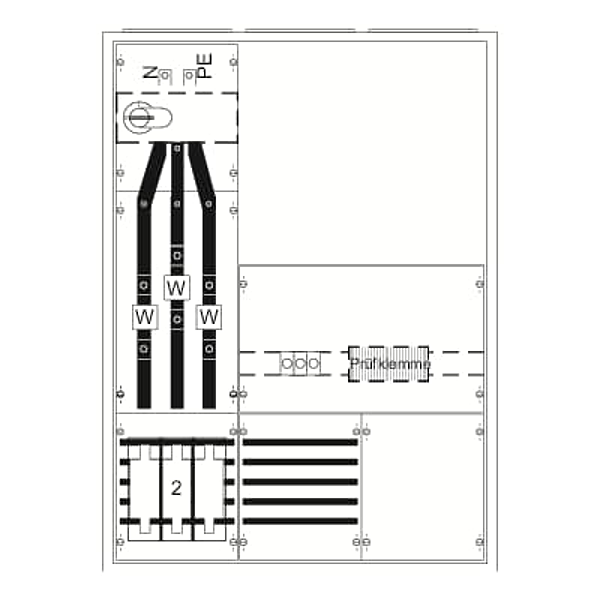

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, double door, door hinge right and left, dimensions in mm (H x W x D): 1100 x 800 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), Test terminal X1 (10 connection points), Pre-wired from current and voltage pfad up to test terminal X1, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 120 qmm, N+PE 120 qmm, Connection N+PE (M8), Note: metering transformer conversion board KF414 required, Busbar terminals should be ordered seperately, Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617329497
Weight: 48.12 kg
Length: 0.233 m
Width: 0.80 m
Height: 1.16 m
