2CPX032948R9999
KS4211
KS4211 Cabinet transf.+meterboard

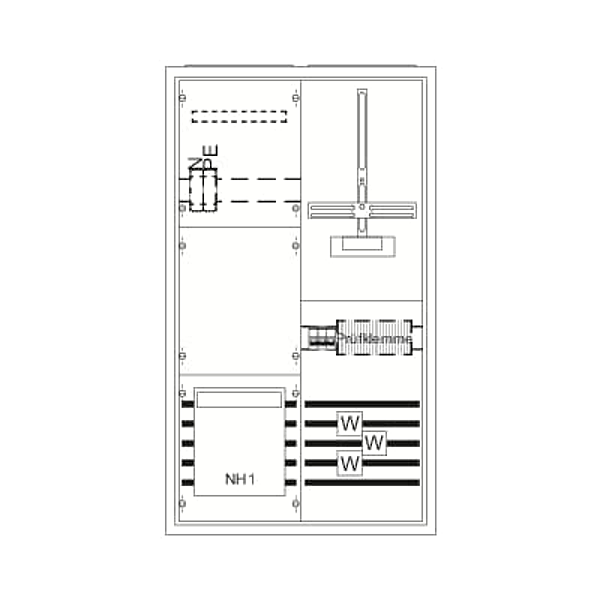

Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 160 A, powder-coated, in RAL 9016, single-leaf door, dimensions in mm (H x W x D): 950 x 550 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, net side compartment, meter space: with busbar, Test terminals are included according wish DSO, Secundary wiringset till test terminal and test test terminal to metering device, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH1/250A, primary wiring N+PE 70 qmm, N+PE Connection N+PE 95qmm, Note: Incomer right above incomer housing on the side e.g. EK230, busbar terminals to ordered seperately, Ratchet unit 6 GU, Overall height 2, panel width 2, Space units 144, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617329480 |
Weight: | 29.92 kg |
Length: | 0.233 m |
Width: | 0.55 m |
Height: | 1.01 m |
