ABB 2CPX032947R9999

KS4019

KS4019 Cabinet transformerboard

Description

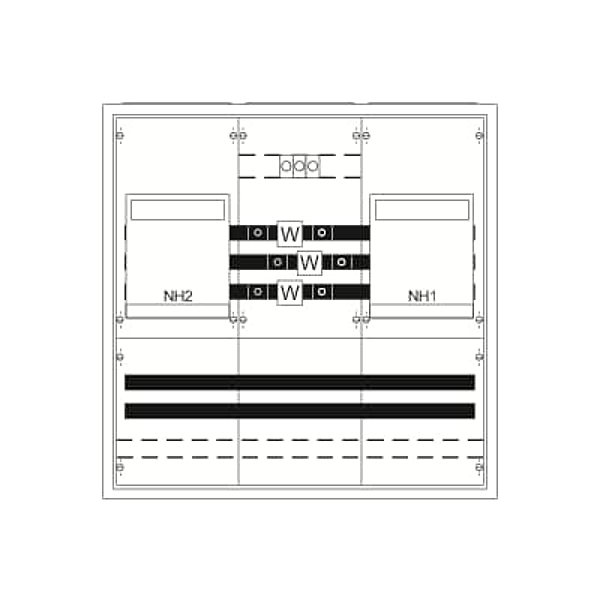

Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 800 x 800 x 275, Earthing system TN-S, 5-pole, voltage path Fuse base element D01/3-pole sealable, busbar system Cu busbars 30 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH2/400A, parting point after the current transformer Fuse switch disconnector NH1/250A, PE+N-busbar Cu 30 x 10 mm, Note: the metering cabinet to be obtained from NRM Hanau, busbar terminals te ordered seperately, Ratchet unit 5 GU, Overall height 1, panel width 3, Space units 180, covers out of Plastic, Quick sealable connection, RAL 7035
