ABB 2CPX032946R9999

KS4014

KS4014 Cabinet transformerboard

Description

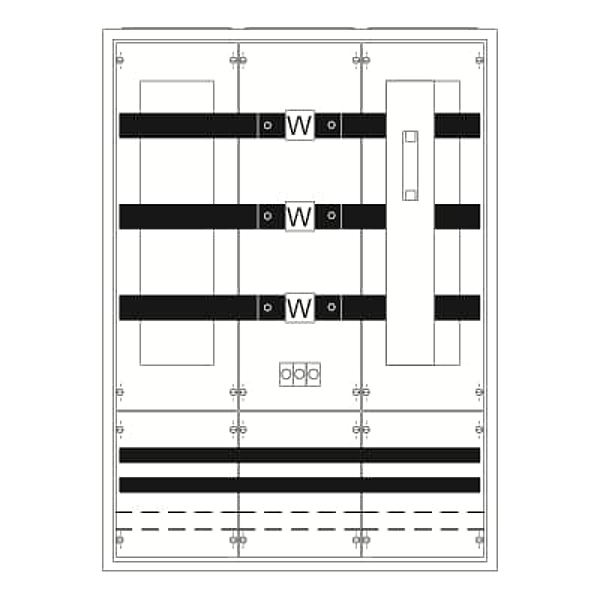

Metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, rated current 400 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1250 x 800 x 350, Earthing system TN-S, 5-pole, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 30 x 10 mm 5-pole, parting point before the current transformer Room for 2 fuse disconnectors NH1/2, 1 fuse disconnector NH2/400 A assembled and reserved space for 1 unit , parting point after the current transformer Fuse disconnectorn NH2/400 A, PE+N-busbar Cu 30 x 10 mm, Note: Fuse disconnector to ordered seperately, Ratchet unit 8 GU, Overall height 4, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035
