Article image 2CPX032926R9999

ABB 2CPX032926R9999

KS4209

KS4209 CT-Meter Cabinet cpl. OH8

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

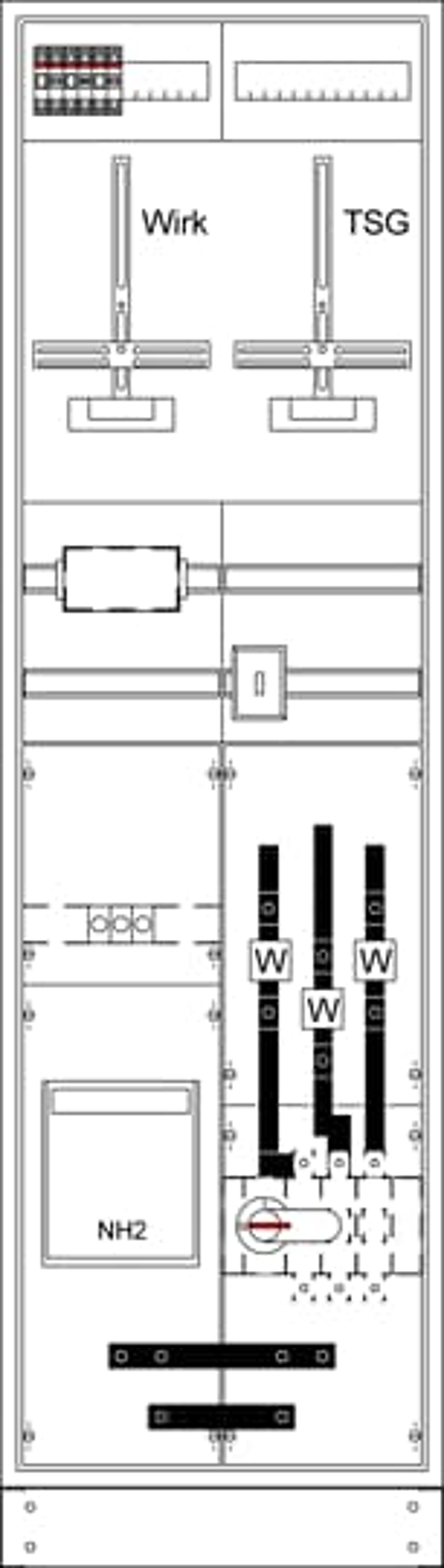

Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection II (double insulated), degree of protection IP55, applicable standards: EN 61439-1, rated current 400 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, dimensions in mm (H x W x D): 1850 x 550 x 225, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of SG spaces 1, Number of transformer meter spaces 1, TAE terminal box 1, Test terminals are included according wish DSO, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, voltage path Fuse base element D01/3-pole sealable, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, parting point after the current transformer Switch 400 A / 3-pole (M10), primary wiring Cu-Busbar 30 x 5 mm, Connection N+PE (M10), Ratchet unit 12 GU, Overall height 8, panel width 2, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617329268
Weight: 73.12 kg
Length: 0.30 m
Width: 0.55 m
Height: 1.92 m
