ABB 2CPX032925R9999

KS4240

KS4240 CT-Meter Cabinet cpl. OH8

Description

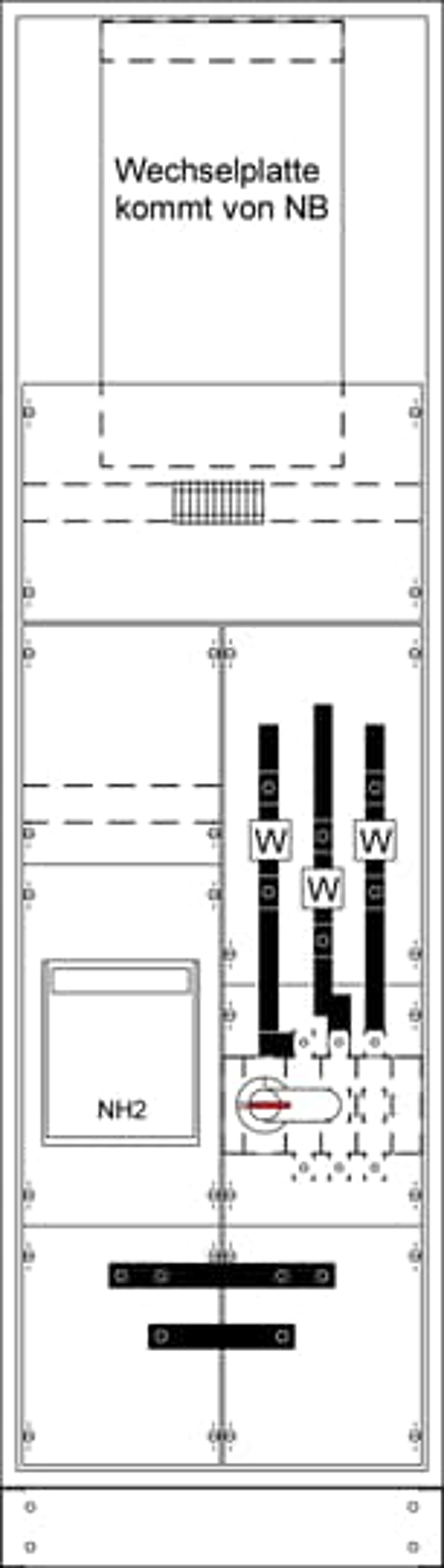

Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, rated current 400 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, with Swivel handle, door opening angle 180 degree, door hinge right or left, dimensions in mm (H x W x D): 1850 x 550 x 225, not pre-wired, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), Test terminal X1 (10 connection points), busbar system Cu busbars 30 x 5 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, parting point after the current transformer Switch 400 A / 3-pole (M10), N+PE 2 Connections N+PE 150qmm, Ratchet unit 12 GU, Overall height 8, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
