ABB 2CPX032778R9999

KS4202

KS4202 CT Metercabinet OH5

Description

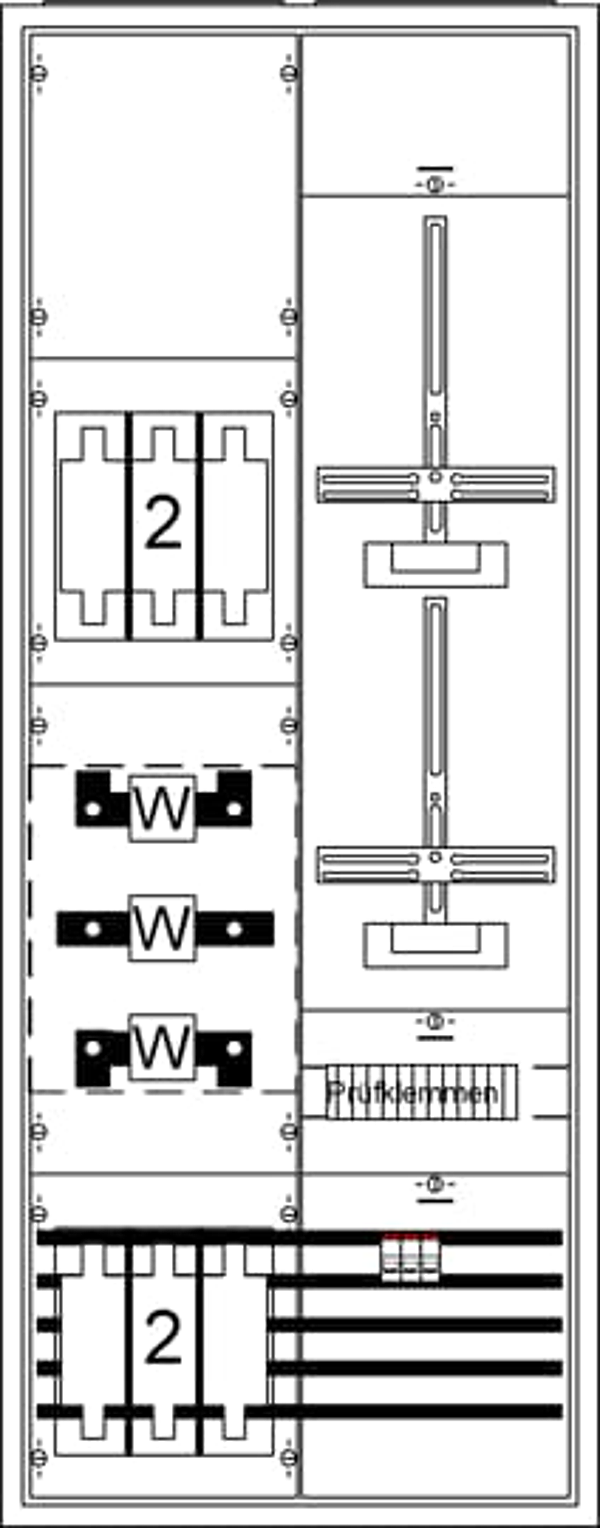

Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, powder-coated, in RAL 9016, single-leaf door, dimensions in mm (H x W x D): 1400 x 550 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Test terminals are included according wish DSO, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
