Article image 2CPX032698R9999

ABB 2CPX032698R9999

KS818SB

KS818SB M+CT-Cabin. compl. 4/4A 25

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

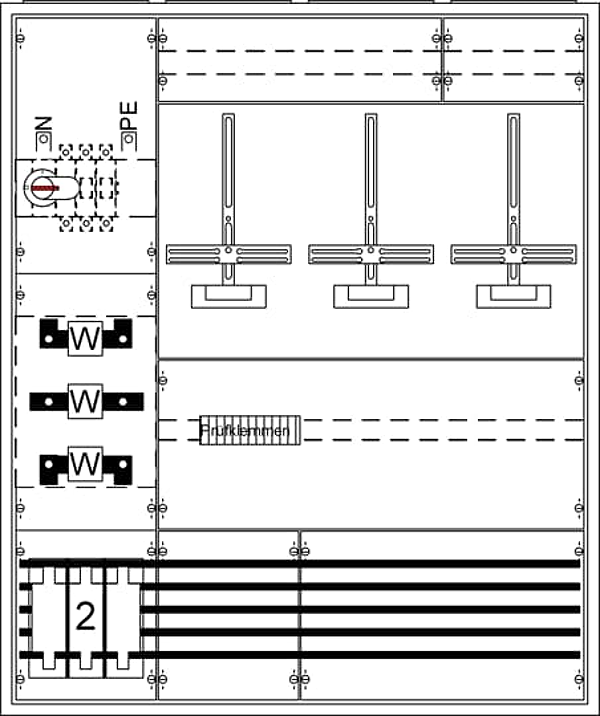

Metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, double door, dimensions in mm (H x W x D): 1250 x 1050 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of reserve spaces 1, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Meter replacement plate with metering conversion board according TAB NS Nord 2012 B2.01, Test terminals are included according wish DSO, Zwischenklemmbereich nach TAB A.5 im Zugang verdrahtet, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Switch 250 A / 3-pole (M8), primary wiring L1-L3 120 qmm, N+PE 120 qmm, Connection N+PE (M8), Note: according TAB NS-Nord 2012 P4.04 left part, Ratchet unit 8 GU, Overall height 4, panel width 4, Space units 384, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617326984
Weight: 82.02 kg
Length: 0.233 m
Width: 1.05 m
Height: 1.31 m
