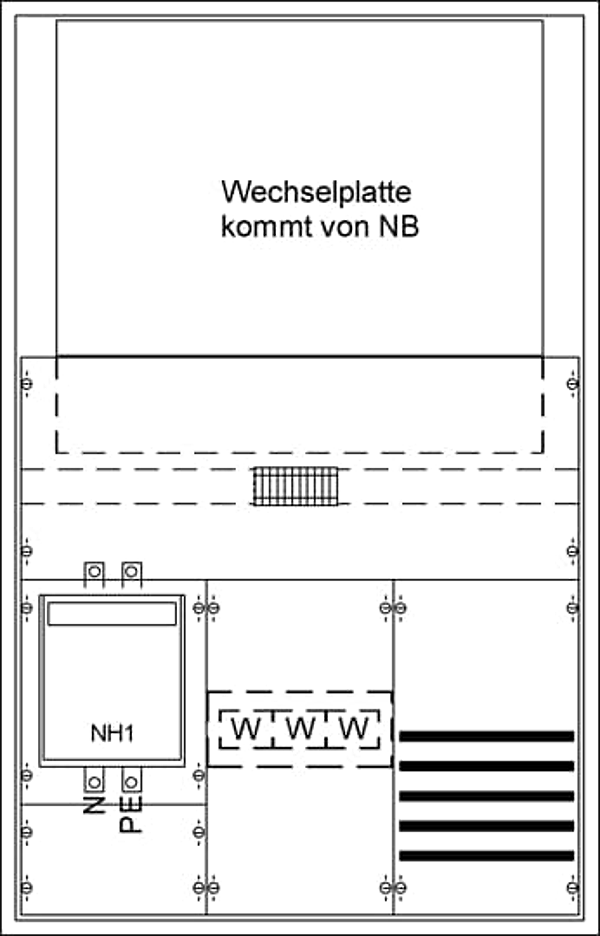

Article image 2CPX032637R9999

ABB 2CPX032637R9999

KS4218

KS4218 Transformer meter cabinet

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 1250 x 800 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of transformer meter spaces 1, TAE terminal box 1, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2, 2 or 3 (KF421, KF414, KF 423), Test terminal X1 (10 connection points), parting point before the current transformer Fuse switch disconnector NH1/250 A, primary wiring 120 qmm, Note: may be required connection set with busbar, to be orderd seperately, Ratchet unit 8 GU, Overall height 4, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617326373
Weight: 45.70 kg
Length: 0.233 m
Width: 0.80 m
Height: 1.31 m
