ABB 2CPX032619R9999

KS472

KS472 Complete cabinet for transf

Description

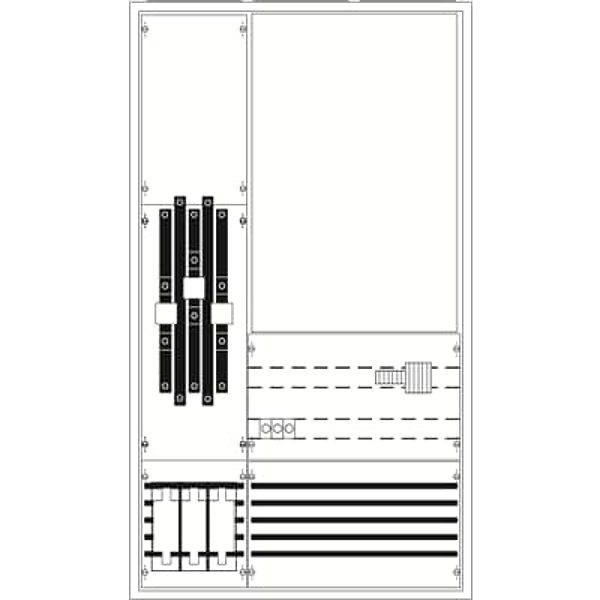

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 1400 x 800 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Meter replacement plate KF424, Test terminal X1 (10 connection points), Secundary wiringset till test terminal, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH1/250 A, primary wiring 120 qmm, L1-L3 Terminal screws (M10), Connection N+PE (M10), Ratchet unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035
