ABB 2CPX032618R9999

KS471

KS471 Complete cabinet for transf

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

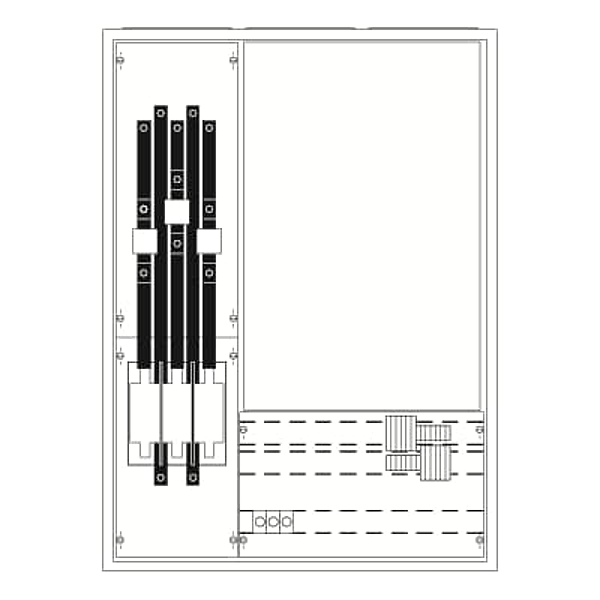

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 1100 x 800 x 215, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate KF424, Test terminal X1 (10 connection points), Secundary wiringset till test terminal, voltage path Fuse base element D01/3-pole, parting point before the current transformer Fuse base element NH1/250A (M10), primary wiring Cu-Busbar 30 x 5 mm, L1-L3 Terminal screws (M10), Connection N+PE (M10), Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, Quick sealable connection, RAL 7035

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617326182
Weight: 42.54 kg
Length: 0.233 m
Width: 0.80 m
Height: 1.46 m
