ABB 2CPX032615R9999

KS458

KS458 Complete cabinet for transf

Description

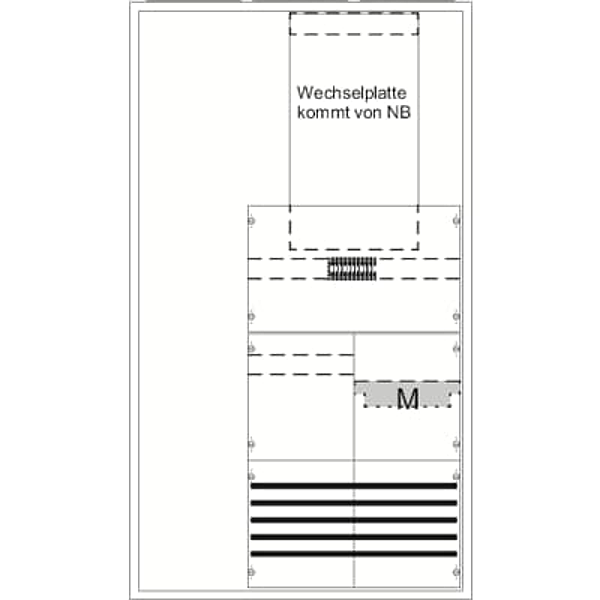

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, enclosure out of sheet steel, double door, with Swivel handle, door hinge right and left, dimensions in mm (H x W x D): 1400 x 800 x 215, not pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Meter replacement plate metering transformer conversion board size 1/2 or 2 (KF421, KF414), Test terminal X1 (10 connection points), busbar system Cu busbars 12 x 5 mm 5-pole, Note: metering transformerboard KA4034-KA4039 required, incomer housing EK220 recommended, possible busbar terminal, connection set for voltage path and current required, Ratchet unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate
