ABB 2CPX032611R9999

KS406EHZ

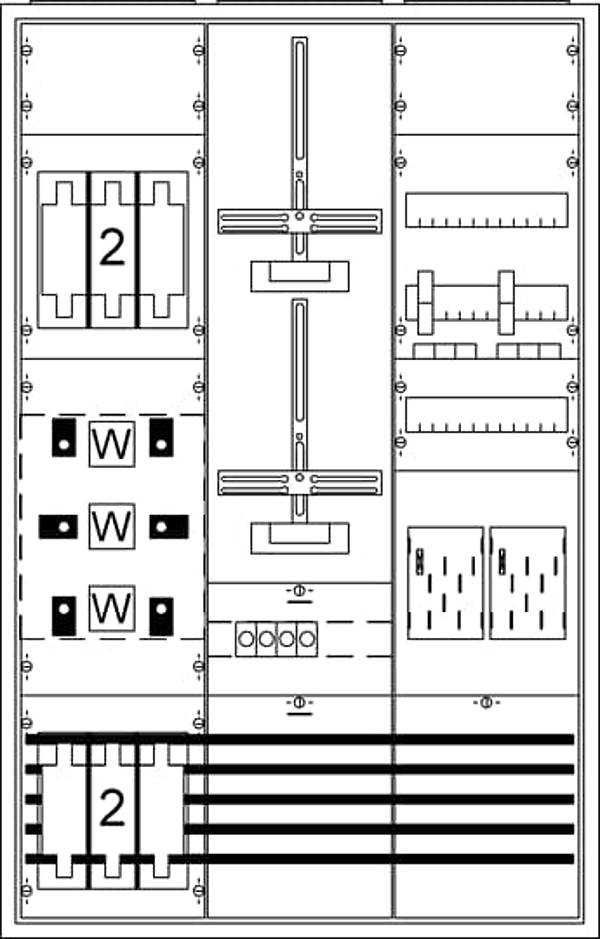

KS406EHZ Complete cabinet transformer

Description

Measurement and metering transformer cabinet, series A, fully assembled cabinet, with BKE-I, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 1250 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of meter spaces single tariff 2, Number of SG spaces 1, (300 mm), Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Metering wiring, voltage path Fuse base element D01/3-pole and D01/1-pole, Secondary wiring current Wiring set H07V-U, Secondary wiring voltage Wiring set H07V-U, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Note: according TAB NS-Nord 2012 B3.09, Ratchet unit 8 GU, Overall height 4, panel width 3, Space units 288, covers out of Plastic, Quick sealable connection, RAL 7035
