ABB 2CPX032401R9999

KS401SB

KS401SB Cabinet Complete

Description

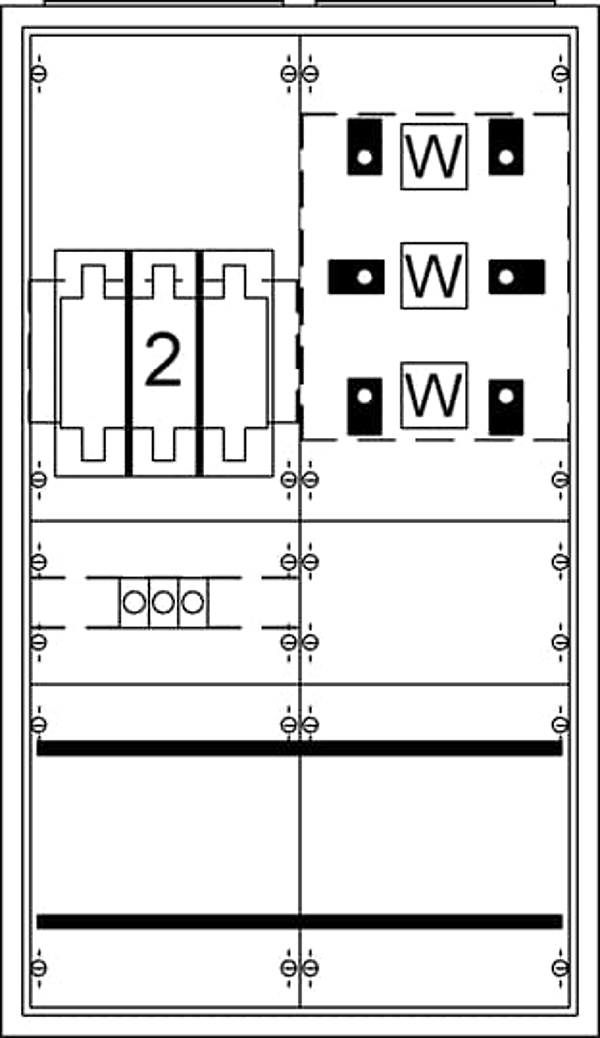

Metering transformer cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, single-leaf door, dimensions in mm (H x W x D): 950 x 550 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, net side compartment, meter space: with busbar, voltage path Fuse base element D01/3-pole, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Note: according TAB NS-Nord 2012 B3.31, Ratchet unit 6 GU, Overall height 2, panel width 2, Space units 144, covers out of Plastic, Quick sealable connection, RAL 7035
