ABB 2CPX032141R9999

KS450

KS450 Complete cabinet for transf.

Description

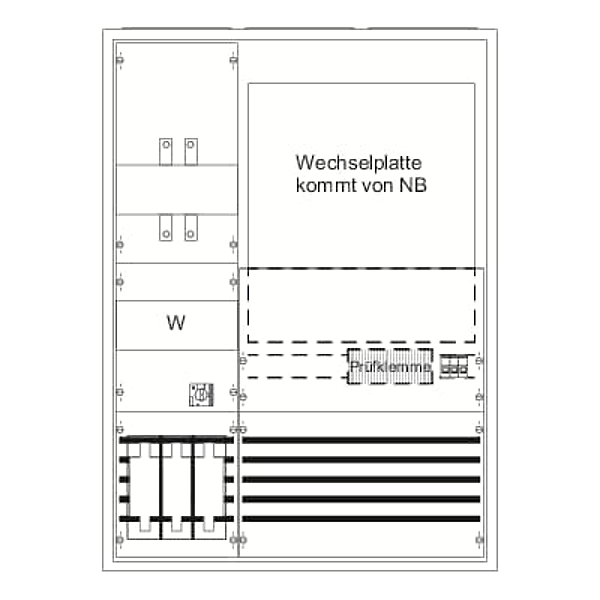

Measurement and metering transformer cabinet, series A, fully assembled cabinet, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 1100 x 800 x 215, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Meter replacement plate Provision from DSO, Test terminal X1 (14 connection points), Pre-wired from current and voltage pfad up to test terminal X1, voltage path Miniature circuit breaker B6/25 kA 3-pole overvoltage path catagory 3 and motorprotection switch 1-1,6A, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Possibility to mount customer switch disconnector ABB OT250/3-polig, primary wiring L1-L3, N 120 qmm, PE 70 qmm, Connection N+PE (M8), Note: Incomer cabinet EK220 recommended, Ratchet unit 7 GU, Overall height 3, panel width 3, Space units 252, covers out of Plastic, Quick sealable connection, RAL 7035
