2CPX031993R9999
KA4245

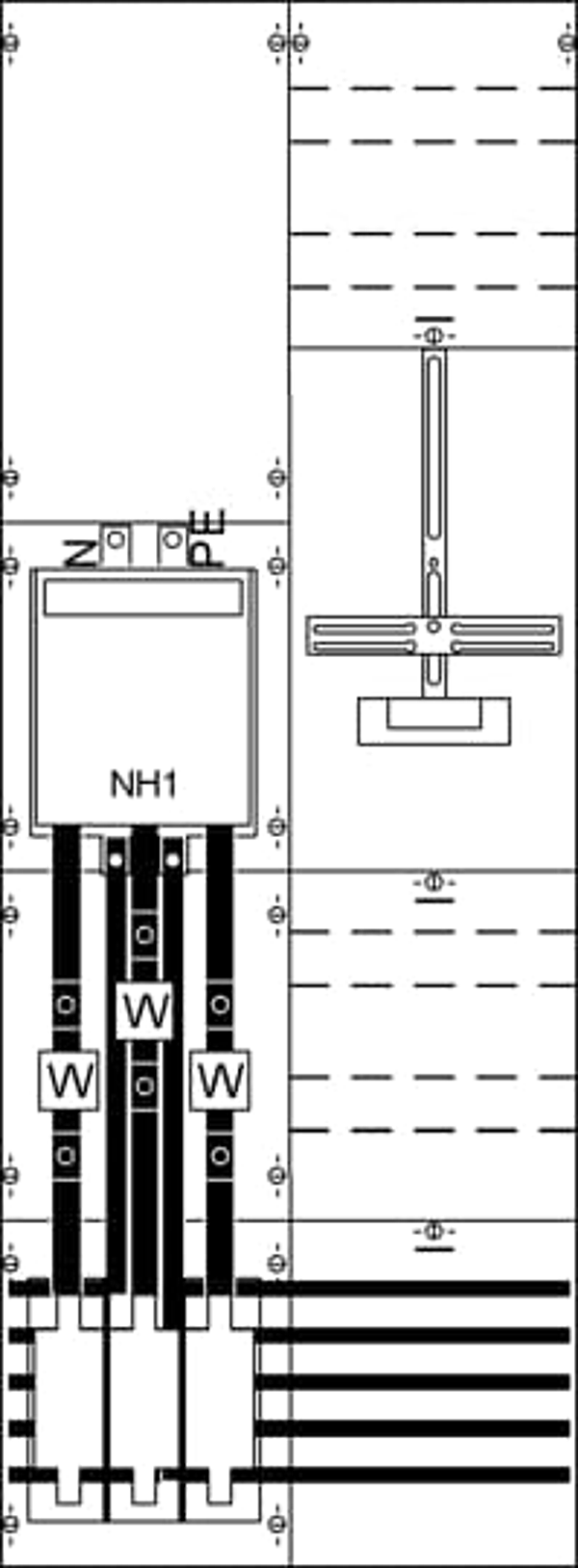

KA4245 Meterboard for transformer
Measurement and metering transformer board, fully assembled module, with Metering cross, for the internal use, applicable standards: EN 61439-1, EN 61439-2, rated current 250 A, dimensions in mm (H x W x D): 1350 x 500 x 160, Earthing system TN-S, 5-pole, Number of meter spaces single tariff 1, Number of transformer meter spaces 1, Room for test terminal, Secundary wiringset till test terminal and test test terminal to metering device, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 120 qmm, Connection N+PE (M8), Note: Busbar terminals should be ordered seperately, Ratchet unit 9 GU, Overall height 5, panel width 2, Space units 216, covers out of Plastic, Quick sealable connection, RAL 7035
ECCN: | |
Country of Origin: | DE |
EAN: | 4011617319931 |
Weight: | 27.51 kg |
Length: | 1.46 m |
Width: | 0.50 m |
Height: | 0.233 m |
