ABB 2CPX031989R9999

KA4050

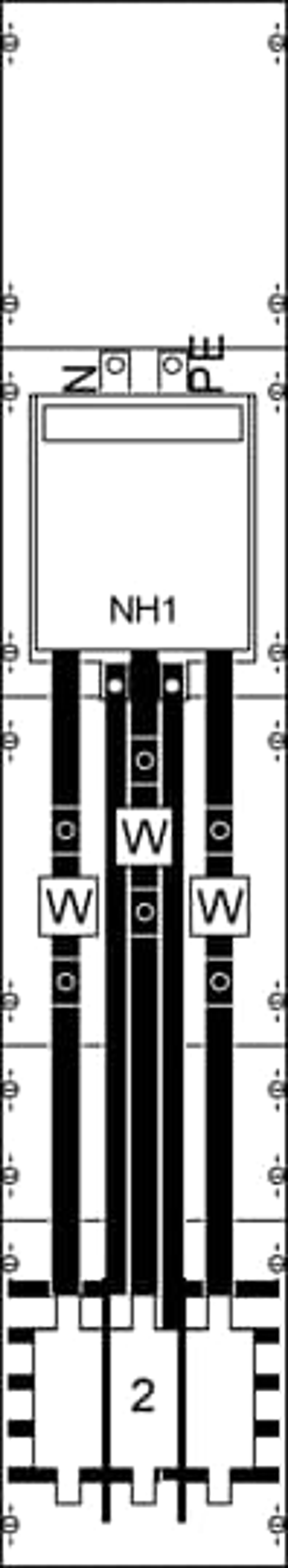

KA4050 Board for transformer

Description

CT meter panel, fully assembled module, for the internal use, applicable standards: EN 61439-1, rated current 250 A, dimensions in mm (H x W x D): 1350 x 250 x 160, Earthing system TN-S, 5-pole, voltage path Range 150 mm for upgrading to voltage path protection fuses, busbar system Cu busbars 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer 2 Fuse switch disconnector NH00/250 A (M10), primary wiring 120 qmm, Connection N+PE (M8), Note: Incomer right above incomer housing on the side e.g. EK230, busbar terminals connection set VS427 to ordered seperately for voltage pathfuse, Ratchet unit 9 GU, Overall height 5, panel width 1, Space units 108, covers out of Plastic, Quick sealable connection, RAL 7035
