Product
ABB
2CPX031617R9999
BL54
Request a Quote
Image copyright: ABB
ABB 2CPX031617R9999
BL54

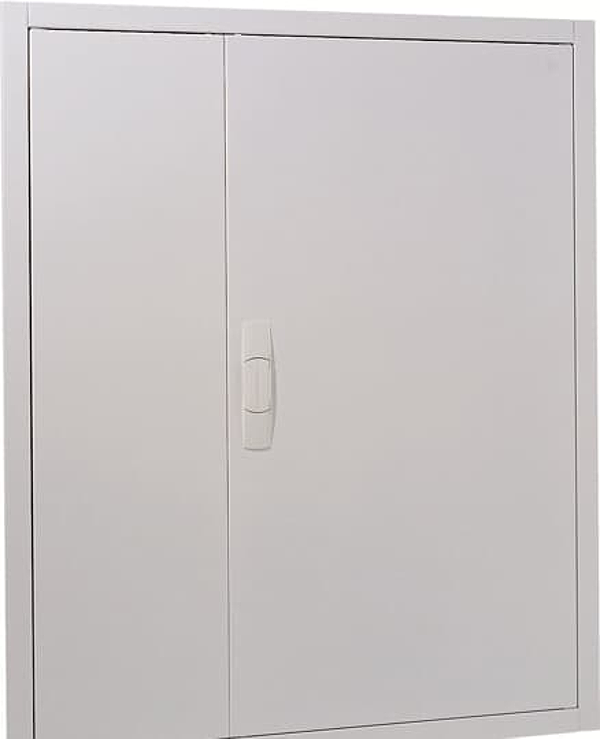

BL54 Trim Frame with Door for 5/4U
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
Panel frame with steel sheet double doors for the U wall-mounting cabinet, flush-mounted and powder-coated, color: RAL 9016, suitable for 5/4U, field width 5, overall height 4 (8 RE), doors with rod lock and standard lock ZB113, a safety lock can be obtained as an accessory for more safety, light panel frame dimensions H x B x T in mm: 1225 x 1275 x 50, panel frame outer dimensions H x W x D in mm: 1291 x 1341 x11.
Logistic parameters
| ECCN: | |
| Country of Origin: | DE |
| EAN: | 4011617316176 |
| Weight: | 20.88 kg |
| Length: | 0.065 m |
| Width: | 1.341 m |
| Height: | 1.31 m |
