Article image 2CPX030774R9999

ABB 2CPX030774R9999

AL43

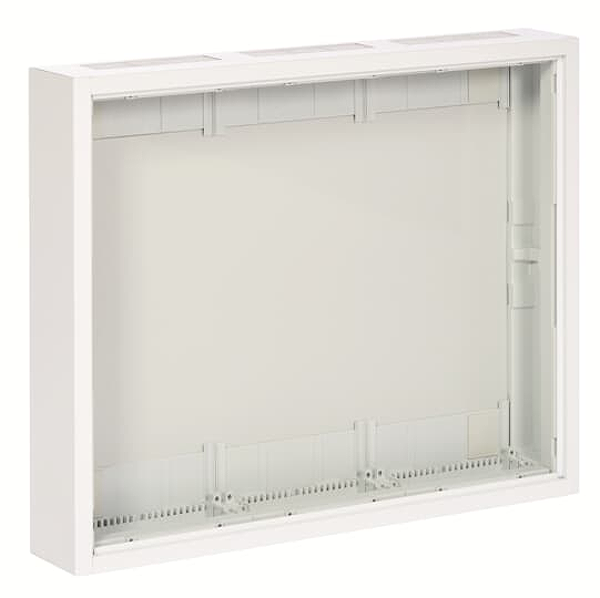

AL43 wall mounting box emty

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

Compact distribution boards, series AL, empty cabinet, for the internal use, without door, class of protection II (double insulated), in combination with earthing set (accessory) we can achieve protection class 1, degree of protection IP30, applicable standards: EN 61439-1, EN 61439-3, Rated operational voltage 400V AC 50/60 Hz, rated current 125 A, powder-coated, in RAL 9016, enclosure out of sheet steel, without door, cable entry on top via membrane flange mounted, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 674 x 824 x 140, Ratchet unit 4 GU, panel width 3, Space units 144, without N/PE Quick-terminal, cable fastening rail integrated, pre-assembled for installation of modules and CombiLine Modules

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4011617307747
Weight: 11.36 kg
Length: 0.145 m
Width: 0.824 m
Height: 0.675 m
