ABB 2CPX010957R9999

TH512G

TH512G TH floor stan PCI IP44

Description

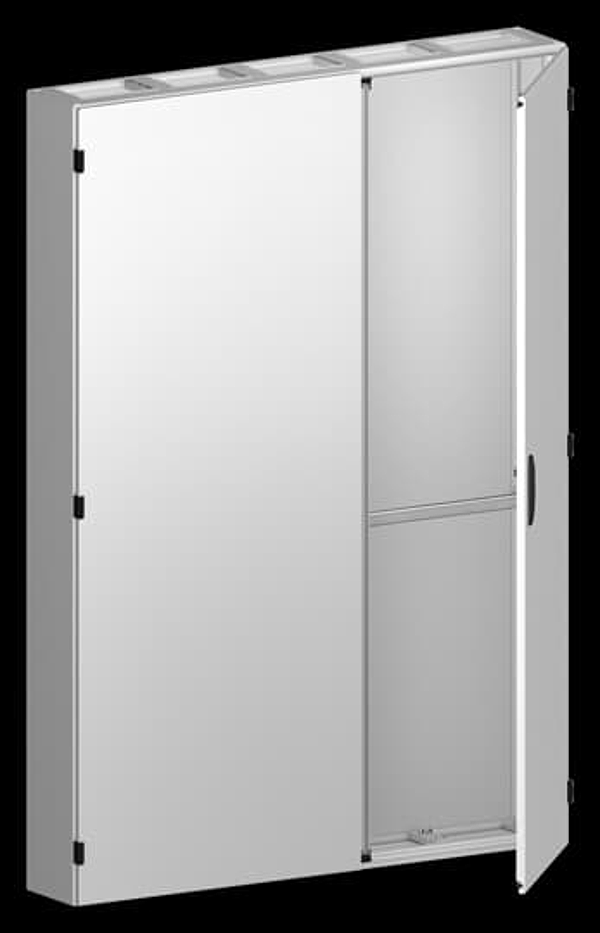

Floor-standing cabinet, series TwinLine, empty cabinet, for the internal use, with Door, class of protection I (earthed), degree of protection IP44, applicable standards: EN 61439-1, IK code 08, powder-coated, in RAL 7035, enclosure out of sheet steel, double door, door out of sheet steel, with Standard locking mechanism double bit, door opening angle 180 degree, door hinge right or left, rear wall out of sheet steel, cable entry on top via flange opening pre-cut, on bottom via flange opening pre-punched, dimensions in mm (H x W x D): 1850 x 1300 x 225, Ratchet unit 12 GU, Overall height 8, panel width 5, Space units 720, pre-assembled for installation of modules and CombiLine Modules
