ABB 2CKA006136A0205

6136/07-811-500

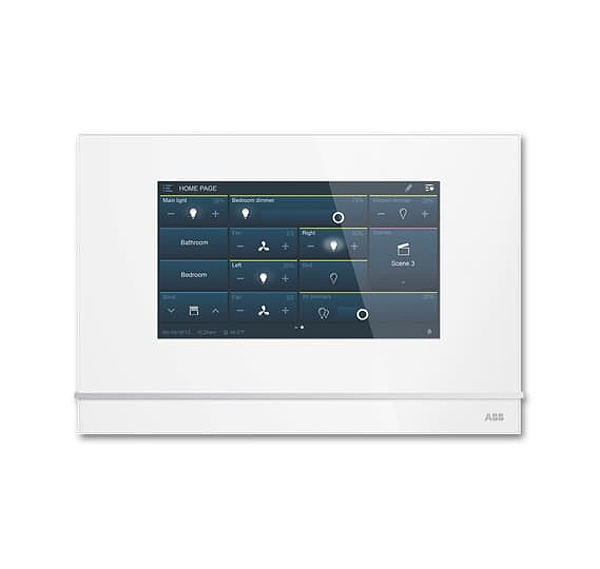

6136/07-811-500 Busch-SmartTouch® 7"

Description

Free programmable KNX touch display as room-integrated controlling, signalling and regulating unit. To be used as indoor video station for the ABB-Welcome door communication system. For the illustration and operation of the following KNX standard functions: - Switching - Dimming - Slider - Blind - RGBW control element - Step switch - Scene switch - Display element - Audio control element With scene function, logic functions, presence simulation and time programs. Functions: - 480 KNX control elements - Audio control elements - RGB control elements - maximum 30 sides - 80 fault and alarm messages - 30 logic functions - 30 timer - presence simulation for 20 participants - 10 scene actuators - 1 object RTC Equipped with a hearing loop for coupling the audio signal into hearing aids. Page display with a maximum of 16 touch surfaces on one page. External power supply: 20-32 VDC (SELV) or via the ABB-Welcome system controller. Consumer units: 15
