ABB 2CCS800900R0291

S803S-SCL32

S803S-SCL32

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

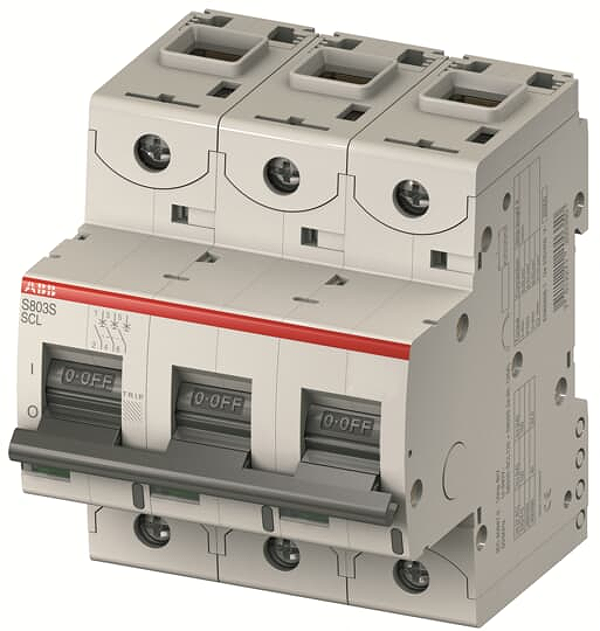

The S803S-SCL32 is a 3-pole short-circuit current limiter for 32A with cage terminal. It can be used together with S800 High Performance Circuit Breaker or Manual Motor Starter. In combination it ensures reliable switch-off of short-circuits currents up to 100kA at 440V AC. For applications at 690V AC the combination of S803S-SCL and S800 or Manual Motor Starter ensures a protection up to 50kA. The S803S-SCL32 has a lever, so in case of a fault you have to reset it. It means in case of TRIP, you have to switch the S803S-SCL32 at first to OFF and then to ON again. Only approved combinations between S803S-SCL32 and S800 or Manual Motor Starter are allowed to be used.

Logistic parameters

ECCN:
Country of Origin: CH
EAN:
Weight: 0.74 kg
Length: 0.0825 m
Width: 0.081 m
Height: 0.095 m
