Article image 2CCA880000R0001

ABB 2CCA880000R0001

CMS-600

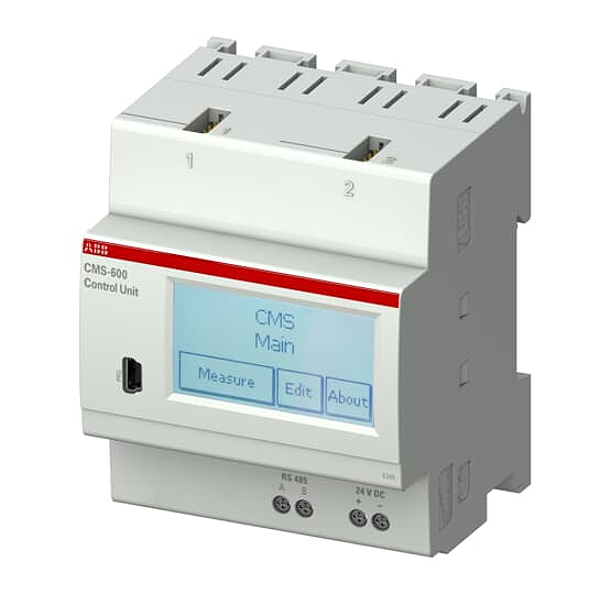

CMS-600 Control unit

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

This component is part of the CMS (Circuit Monitoring Systems) familiy. CMS components are made to measure the final circuits (branches) of installations. Each monitoring system consists of a Control Unit and sensors with different measurement ranges and mounting possibilities. Up to 2 x 32 sensors can be connected to each CMS-600 Control Unit. 247 identifiers can be set on the device. Thereby it is possible to aquire thousands of measurement points over one bus line. This means the CMS-600 can be used as a highly-efficient-measurement system, even in very large, extensively networked installations. The user can get access to the data via an integrated touch-display or remotely by a RS485 Modbus interface.

Logistic parameters

ECCN:
Country of Origin: CH
EAN:
Weight: 0.15 kg
Length: 0.0649 m
Width: 0.0718 m
Height: 0.087 m
