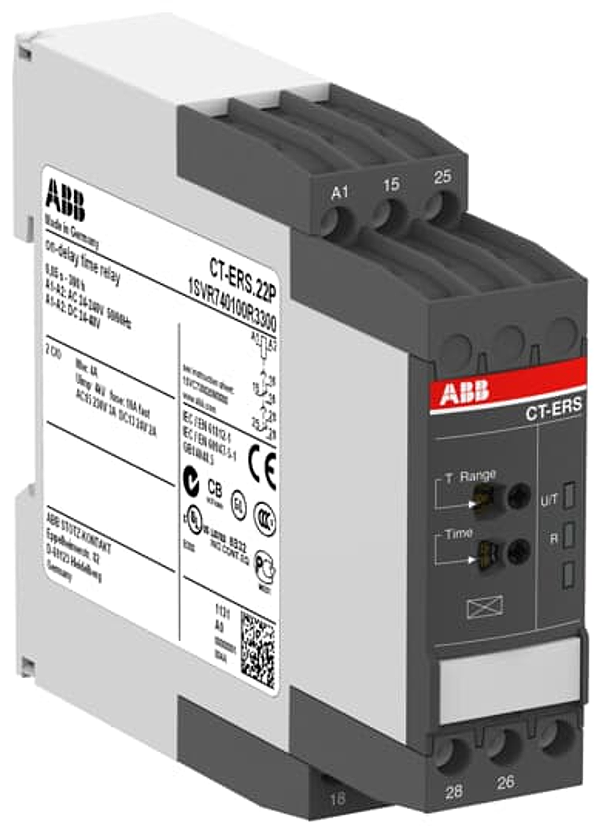

Article image 1SVR740100R3300

ABB 1SVR740100R3300


CT-ERS.22P Time relay, ON-delay 2c/o, 24-48VDC, 24-240VAC

On Request. Please send us an email to inquire the price and avaliability.


The CT-ERS.22P is a single-function electronic time relay from the CT-S timer range. It provides an ON-delay (delay on make) function with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.

Logistic parameters

Country of Origin: DE
Weight: 0.11 kg
Length: 0.1037 m
Width: 0.0225 m
Height: 0.0856 m
