1SVR740010R0200
CT-MFS.21P

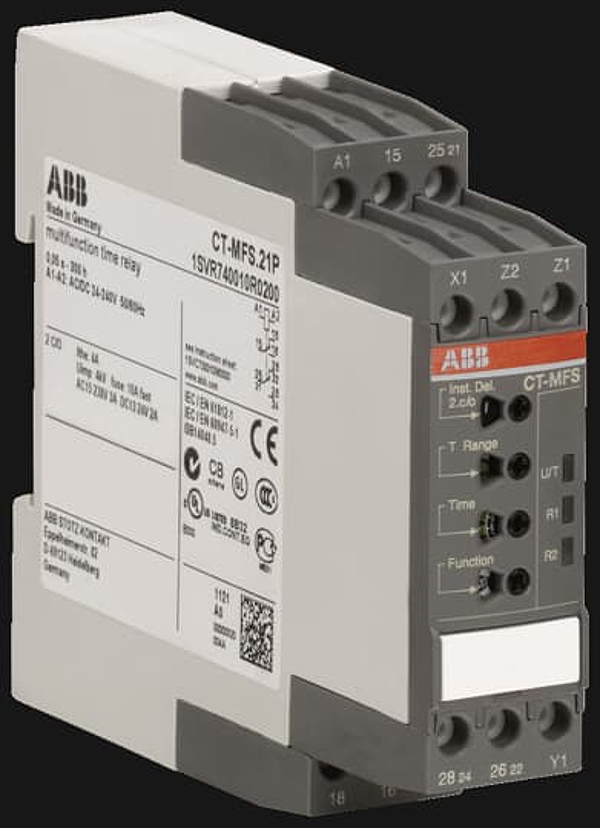

CT-MFS.21P Time relay, multifunction 2c/o, 24-240VAC/DC
The CT-MFS.21P is a multifunction electronic time relay from the CT-S timer range. It provides 10 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. Two control inputs work with volt-free (floating) triggering.The CT-MFS.21P offers the possibility of connecting a remote potentiometer for the fine adjustment of the time delay. The second of the c/o contacts can be selected as an instantaneous contact. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers maintenance free Easy Connect Technology with push-in terminals.
ECCN: | |
Country of Origin: | DE |
EAN: | |
Weight: | 0.13 kg |
Length: | 0.1037 m |
Width: | 0.0225 m |
Height: | 0.0856 m |
