Article image 1SVR730040R3300

ABB 1SVR730040R3300

CT-WBS.22S

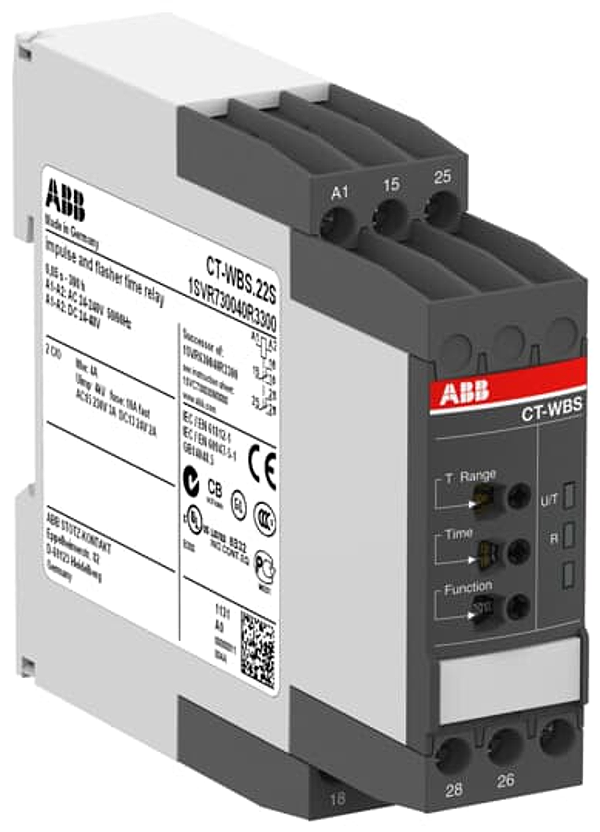

CT-WBS.22S Time relay, impulse & flasher 2c/o, 24-48VDC, 24-240VAC

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The CT-WBS.22S is an electronic impulse and flasher time relay from the CT-S timer range. It provides 7 timing functions with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.

Logistic parameters

ECCN:
Country of Origin: DE
EAN:
Weight: 0.12 kg
Length: 0.1037 m
Width: 0.0225 m
Height: 0.0856 m
