ABB 1SVR500020R0000
CT-MFD.12

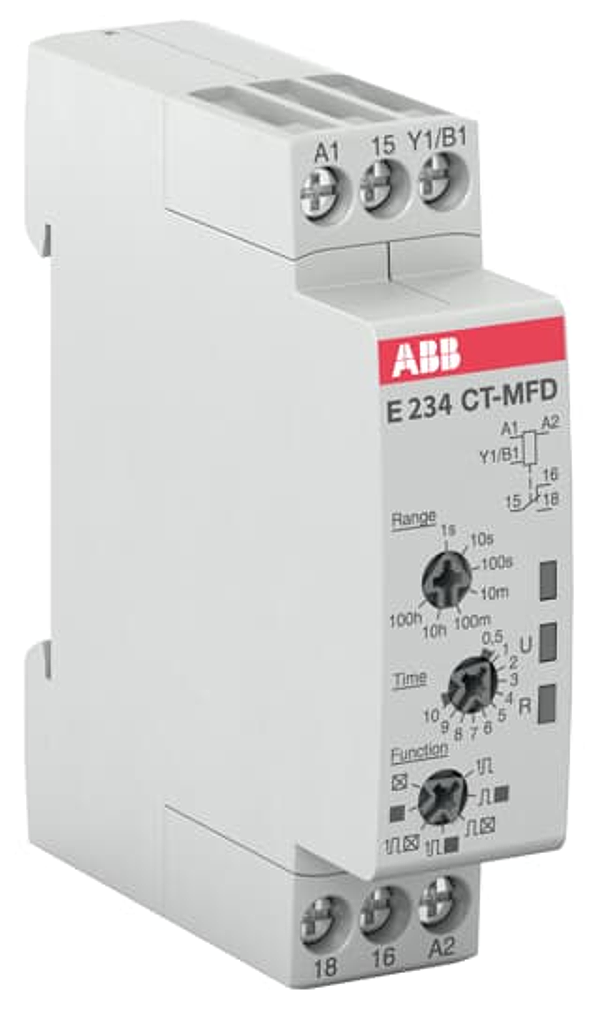

CT-MFD.12 Time relay, multifunction 1c/o, 24-240VAC 24-48VDC
On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"
Description
The CT-MFD.12 is a multifunction electronic time relay from the CT-D timer range. It provides 7 timing functions with 7 time ranges from 0.05 s to 100 h. This time relay operates with a rated control supply voltage of 24 - 48 V DC / 24 - 240 V AC and has a 1 c/o (SPDT) output rated at 250 V / 4 A. A control input works with voltage-related (non-floating) triggering.
Logistic parameters
| ECCN: | |
| Country of Origin: | BG |
| EAN: | |
| Weight: | 0.05 kg |
| Length: | 0.063 m |
| Width: | 0.0175 m |
| Height: | 0.07 m |
