Article image 1SVR440721R0200

ABB 1SVR440721R0200

CL-LMR.CX18DC2

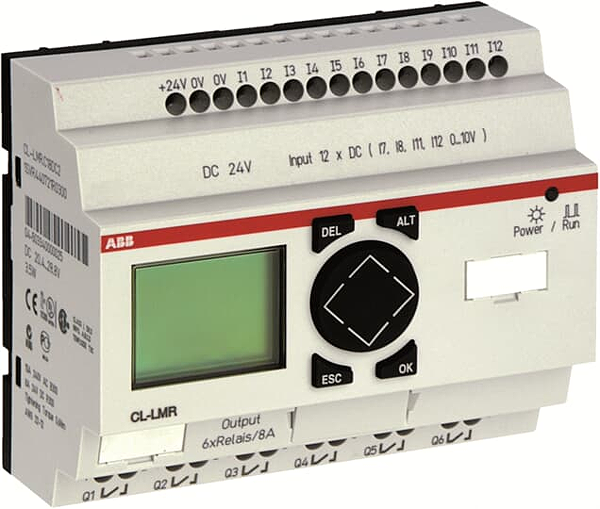

CL-LMR.CX18DC2 Logic relay 24VDC, 12I/6O, relay

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

The CL-LMR.CX18DC2 is a logic relay from the CL range. It has 12 digital inputs and 6 relay outputs. 4 digital inputs can be used as analog inputs. The logic relay operates with an input voltage of 24 V DC. It offers the possibility of connecting local and remote expansions via CL-LINK. 128 rungs with 3 contacts in series plus 1 coil can be programmed. The following functions are available: 8 week and 8 year timers, 16 multifunction timing relays, 4 operating hours counters, 16 analog value comparators, threshold value switches, 2 high-speed counters and 2 frequency counters.

Logistic parameters

ECCN:
Country of Origin: DE
EAN: 4013614389658
Weight: 0.36 kg
Length: 0.112 m
Width: 0.1075 m
Height: 0.07 m
