Article image 1SVR427035R2000

ABB 1SVR427035R2000

CP-E 48/10.0

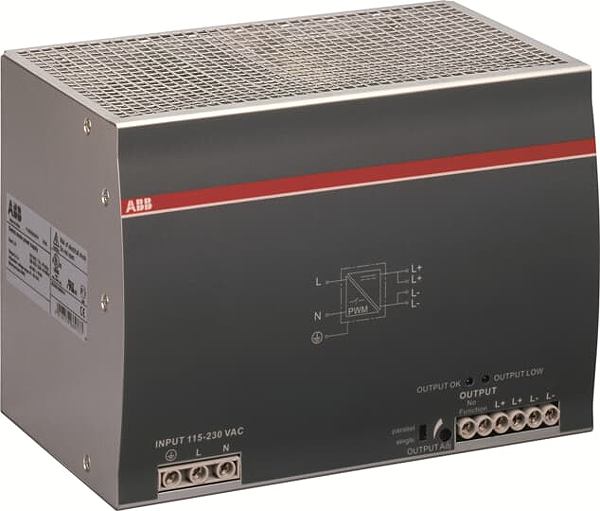

CP-E 48/10.0 Power supply In:115/230VAC Out: 48VDC/10A

On Request. Please send us an email to inquire the price and avaliability.


The CP-E 48/10.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 115-230 V AC. The rated output power is 480 W, rated output current is 10 A at an output voltage of 48 V DC. The output voltage is adjustable within a range of 47 to 56 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel.

Logistic parameters

Country of Origin: CN
Weight: 1.84 kg
Length: 0.1236 m
Width: 0.175 m
Height: 0.1236 m
