1SLM004100S3305
M41W224N3

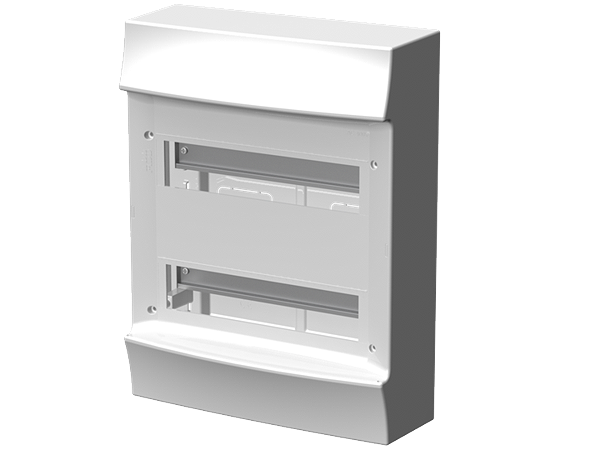

Consumer unit Mistral41W 24modules
Consumer unit, series Mistral 41, for the internal use, without door, class of protection II (double insulated), degree of protection IP41, applicable standards: EN 60670-1, EN 60670-24, IK code 08, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, in RAL 9016, enclosure out of Polystyrol, without door, door opening angle 180 degree, cable entry on top via pre-punched, on bottom via pre-punched, on side via closed cable entry, dimensions in mm (H x W x D): 390 x 300 x 125, 2-rows, Space units 24, Row distance in mm: 125, covers out of Plastic, Captive screws, with N/PE Quick-terminal
ECCN: | |
Country of Origin: | IT |
EAN: | 8000126297294 |
Weight: | 1.60 kg |
Length: | 0.39 m |
Width: | 0.297 m |
Height: | 0.125 m |
