Article image 1SCA158323R1001

ABB 1SCA158323R1001

OTDC630FV22K

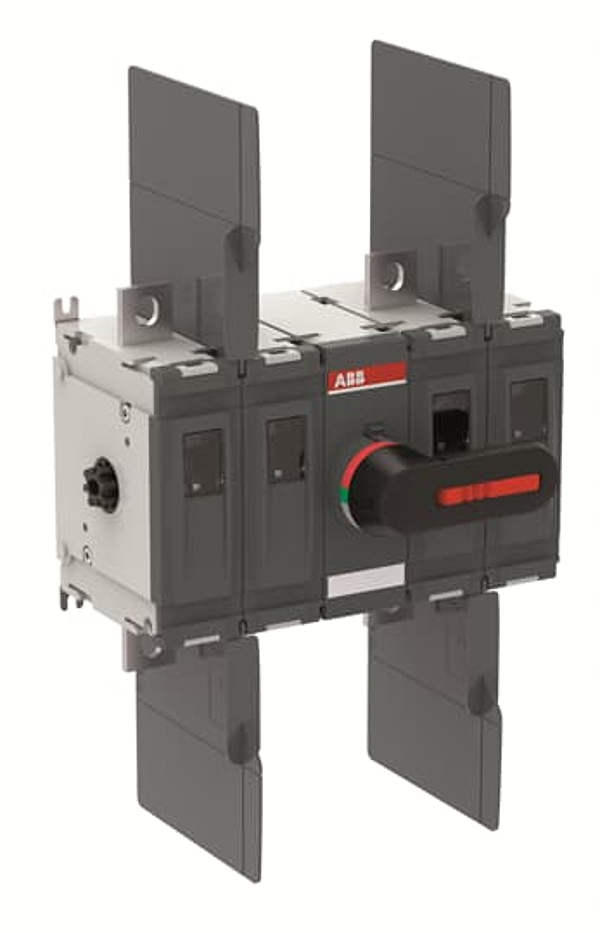

OTDC630FV22K DC Switch-disconnector

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

A fully optimized four-pole DC switch-disconnector for 1500V utility-scale photovoltaic power plants covering 315-630A current range. The new design offers both a size reduction and an increase in efficiency and performance to help manufacturers adapt to the industry’s rapid adoption of 1500V DC solutions. The four-pole 1500V DC concept helps manufacturers improve system efficiency, reducing switch losses. The compact size of the new OTDC range makes it possible for manufacturers to reduce the size of combiner boxes and inverters. Main characteristics of this particular OTDC type:. Disconnect double PV circuit, Approved according to IEC 60947-1, -3

Logistic parameters

ECCN:
Country of Origin: FI
EAN:
Weight: 6.20 kg
Length: 0.1695 m
Width: 0.2555 m
Height: 0.211 m
