1SBN072303T1000
LY38-4

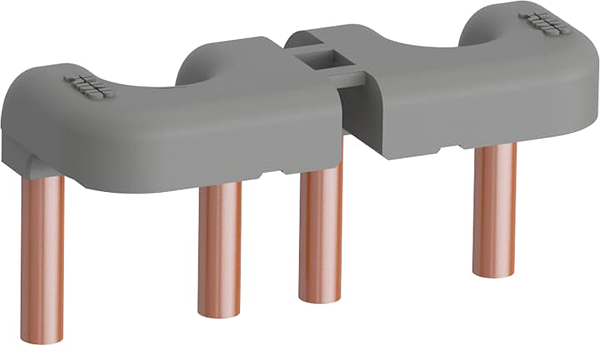

LY38-4 Connecting Strip
Parallel and series connection of 3-pole contactors:. To obtain a star point (3 parallel-connected poles). To connect poles in parallel and thus increase the AC load passing through the flow path made up of the parallel-connected poles: LP, LY, LH, LF, LG. The relevant cable cross-sectional area may limit the maximum permissible current. Consult information in table below. To connect poles in series and thus increase the DC voltage controlled by the poles: LP, LY (only LY16-4 and LY38-4 secable strips).
ECCN: | |
Country of Origin: | CN |
EAN: | |
Weight: | 0.01 kg |
Length: | 0.018 m |
Width: | 0.0431 m |
Height: | 0.022 m |
