Article image 1SBL249001R8100

ABB 1SBL249001R8100

AE26-30-00 24V DC

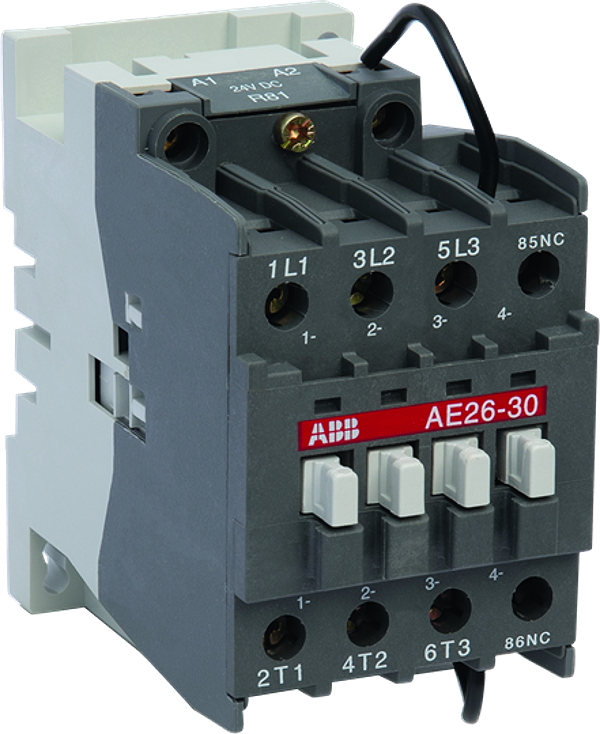

AE26-30-00 24V DC Contactor

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

AE26 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AE.. series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with standard double-winding DC coils (with add-on factory-mounted lagging contact for insertion of the"holding" winding) - Accessories: a wide range of accessories is available.

Logistic parameters

ECCN:
Country of Origin: FR
EAN: 3471522228819
Weight: 0.60 kg
Length: 0.115 m
Width: 0.054 m
Height: 0.061 m
