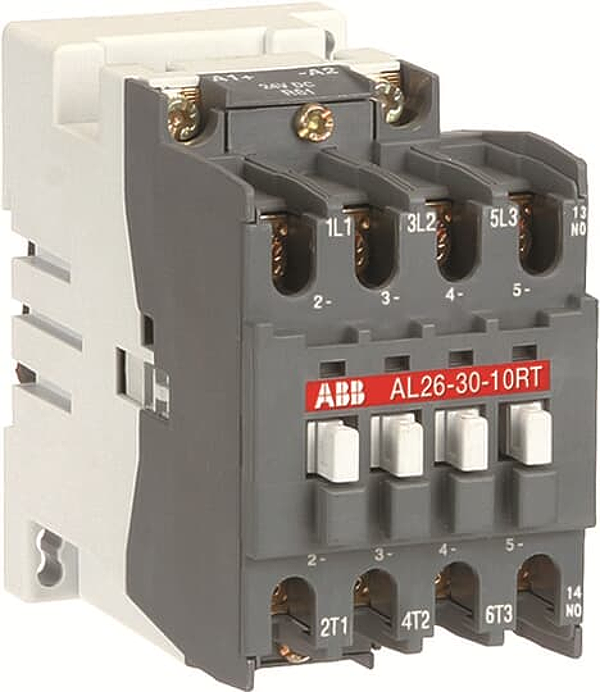

Article image 1SBL243010R8110

ABB 1SBL243010R8110

AL26-30-10RT 24V DC

AL26-30-10RT 24V DC Contactor

On Request. Please send us an email to inquire the price and avaliability.
"ucnguBrctvdgcxgt0eqo"

Description

AL26 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AL..RT contactors are the Ring Tongue terminal version of the AL.. range. The AL.. series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. AL.. contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs.

Logistic parameters

ECCN:
Country of Origin: BG
EAN:
Weight: 0.75 kg
Length: 0.1106 m
Width: 0.054 m
Height: 0.09 m
