Article image 1SBL243001R8101

ABB 1SBL243001R8101

AL26-30-01 24V DC

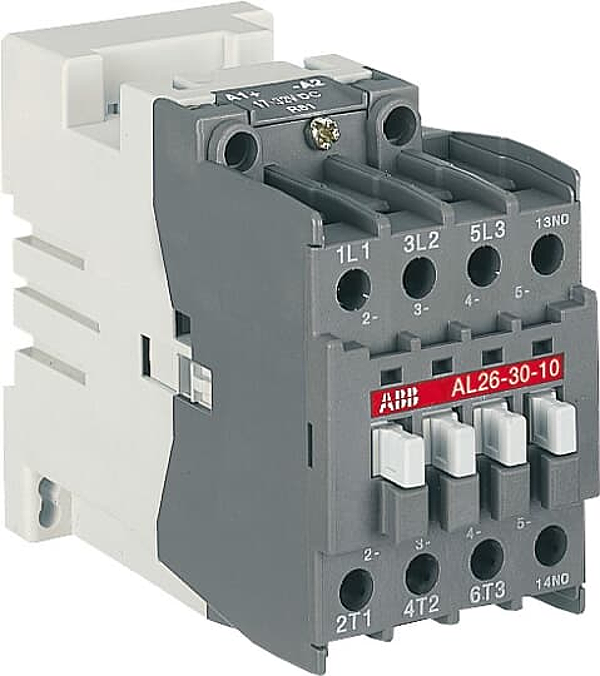

AL26-30-01 24V DC Contactor

On Request. Please send us an email to inquire the price and avaliability.


AL26 contactors are mainly used for controlling 3-phase motors and generally for controlling power circuits up to 690 V AC or 220 V DC. The contactors can also be used for many other applications such as isolation, capacitor switching, lighting. The AL.. series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks - Control circuit: DC operated with solid core magnet circuit. The polarity on the coil terminals (A1+ and A2-) must be respected - Accessories: a wide range of accessories is available. AL.. contactors are fitted with low consumption DC coils and are suitable for a direct control by PLC outputs.

Logistic parameters

Country of Origin: BG
Weight: 0.75 kg
Length: 0.1106 m
Width: 0.054 m
Height: 0.09 m
